Vortex EC 2133

Vortex EC 2133

Single Slot Ethernet Cradle for the Zebra MC3300 series.

Stable Ethernet for Zebra's MC3300 series

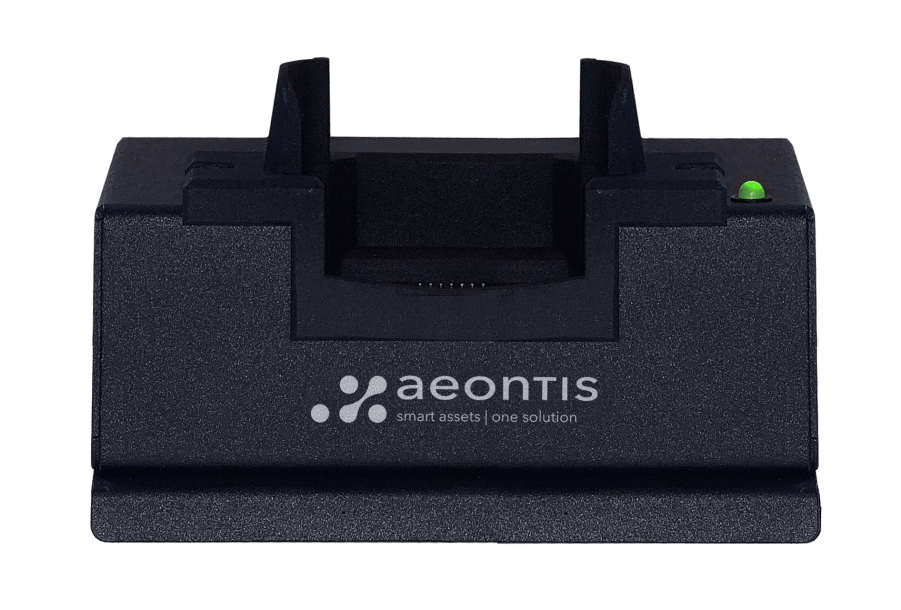

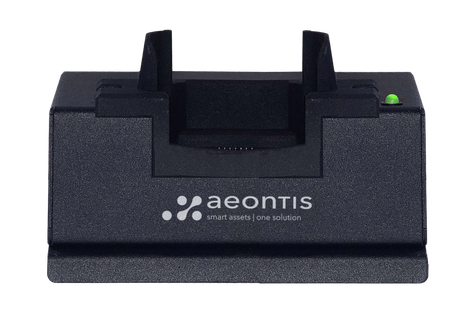

The Vortex EC 2133 is a very robust and high quality single-slot Ethernet-cradle, fitting to the ZEBRA MC3300 series, featuring 10/100 Mbps fast Ethernet connectivity with an RJ45 connection.

With the same technology used by Zebra, the Vortex EC 2133 does not require any drivers or additional software on the Zebra device. Updates on the Zebra device will also work with the Vortex EC 2133 without additional installations.

Built to last in rough, demanding environments, the Vortex EC 2133 Ethernet cradle is designed for long-lasting in enterprise use. The cradle and power supply are fully suitable for the installation in racks or cabinet systems.

The Vortex EC 2133 comes as a kit including power supply, AC cable, 3m Ethernet cable and a multi-plug with EU, US, UK and Australian pins.

Compatible Hardware

Zebra Technologies MC3300
Rugged mobile computer series
Brick and gun version (with and without pistol grip)
Zebra MC3300 Webshop
VORTEX EC 2133
TECHNICAL SPECIFICATIONS
  • Ethernet Port

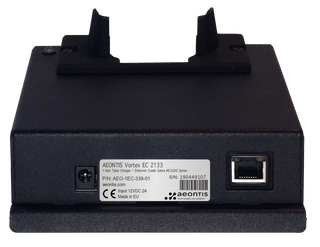

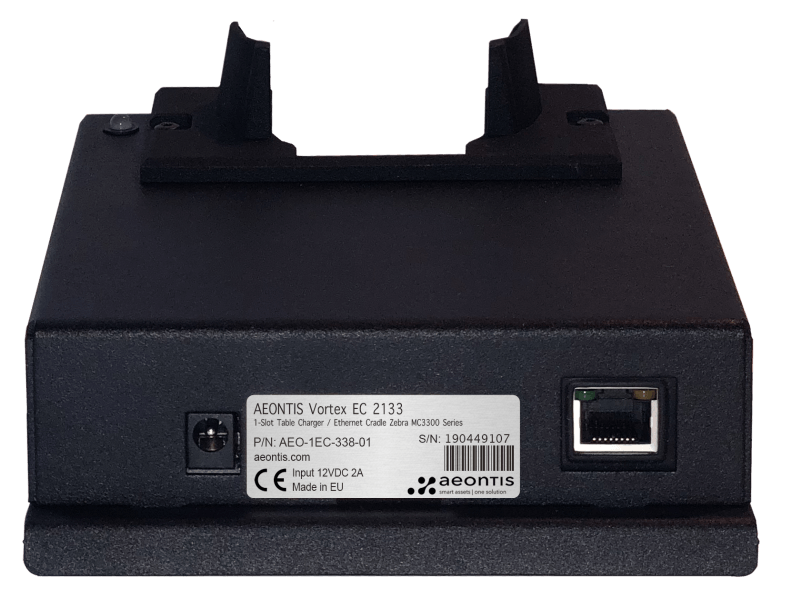

    10/100 Mbps Ethernet

    RJ-45 Connection

  • USB Port (optional)

    Type USB-C Connection

  • Power

    12V 1.5A

    Plug: Wall cube supplied with European, US, UK and Australian pins

    Colored LED showing charging status

  • Weight

    800g

  • Environmental

    Temperature 0 to 50° Celsius

    Humidity 90% non-condensing

  • Regulatory and Certifications

    CE Mark

    RoHS

  • Software / Drivers

    No drivers needed on the handheld, drivers are pre-loaded on Zebra MC3300 devices

Wired Ethernet
  • Legendary Portsmith Ethernet technology brings 10/100 wired Ethernet to the handheld
  • Driver support is already on the handheld – no software or drivers to load
  • Safe and secure data communication when wireless is not an option or not available
  • Always on and ready to transfer data – just drop into the cradle

Safe, Conditioned Power
  • Over voltage protection, current limiting and polarity protection secures the handheld and the dock from electrical damage
  • Handheld charges at its maximum charging rate
  • Highest quality build and component selection
  • Colored LED in red or green showing charging status of the handheld
  • Power wall cube supplied with pins for EU, US, UK and Australian use

Precision Mechanical Design
  • Rugged and robust design, created to last in demanding environment
  • Tough ABS plastic cradle cup mounted on a sturdy powder coated steel stand

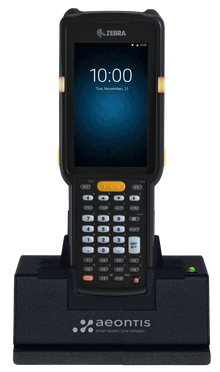

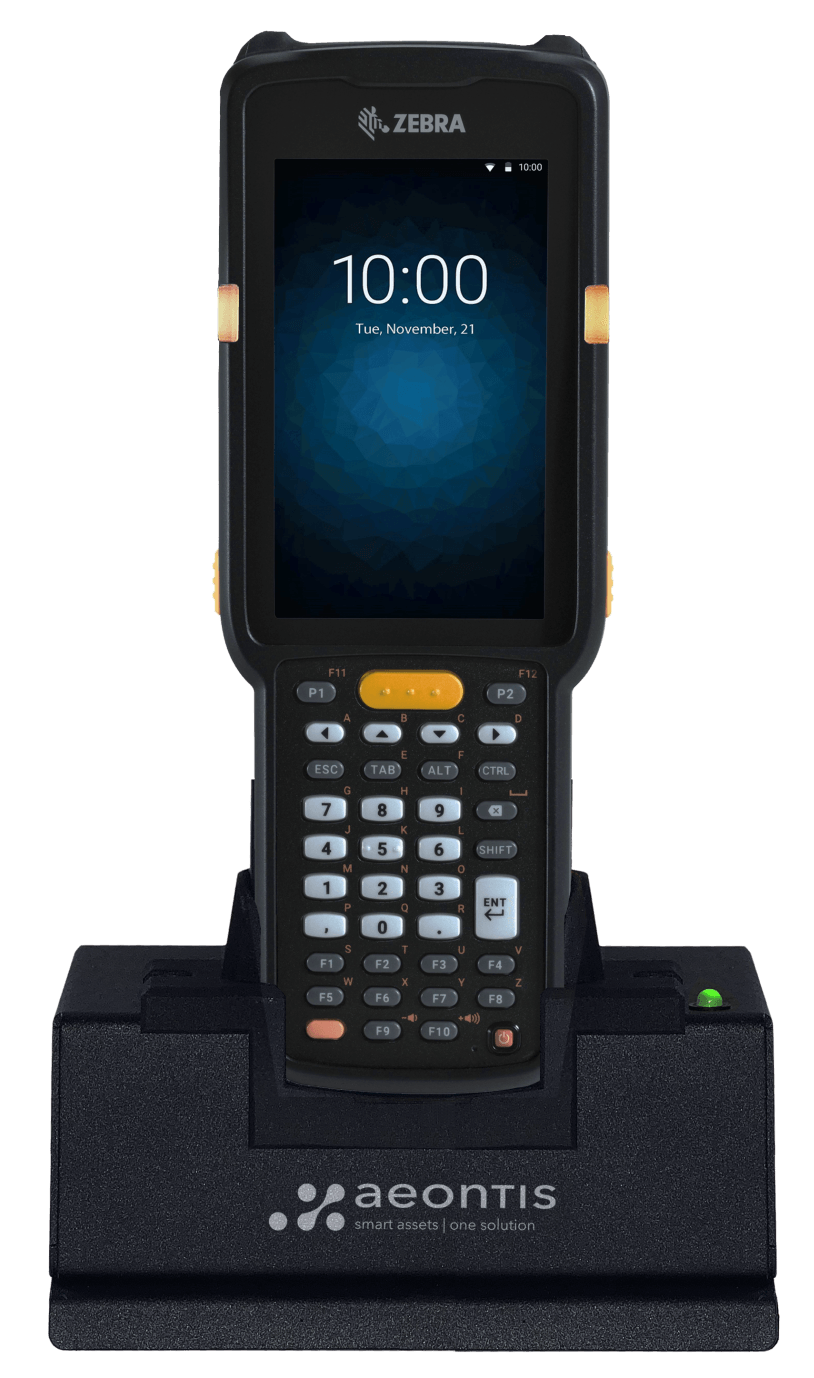

  • Fully supports the Zebra Technologies MC3300 series with or without trigger handle (brick and gun version)
  • Designed for long-lasting enterprise use
  • Accurate alignment of the handheld with the dock connector ensures solid pin contact and easy drop and remove
  • Incorporated drain allows accidental spills to quickly run from cup and away from electronics

Ordering Information
  • Ethernet Cradle Aeontis Vortex EC 2133
  • Part Number / SKU / Ordering Number: AEO-1EC-338-01
  • Kit including Cradle/Dock, power supply, AC cable, 3m Ethernet cable, EU/US/UK/AUS plug
